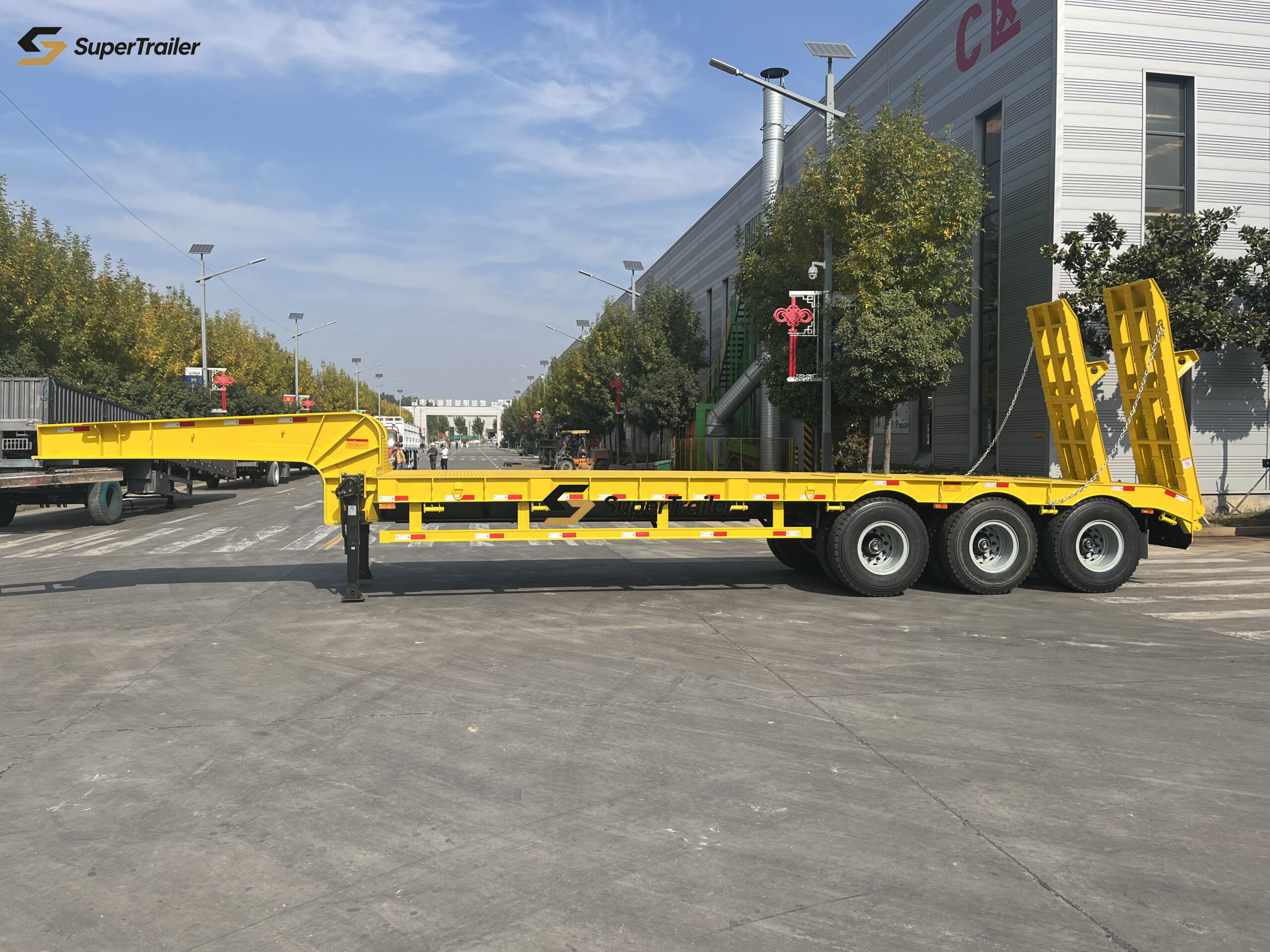

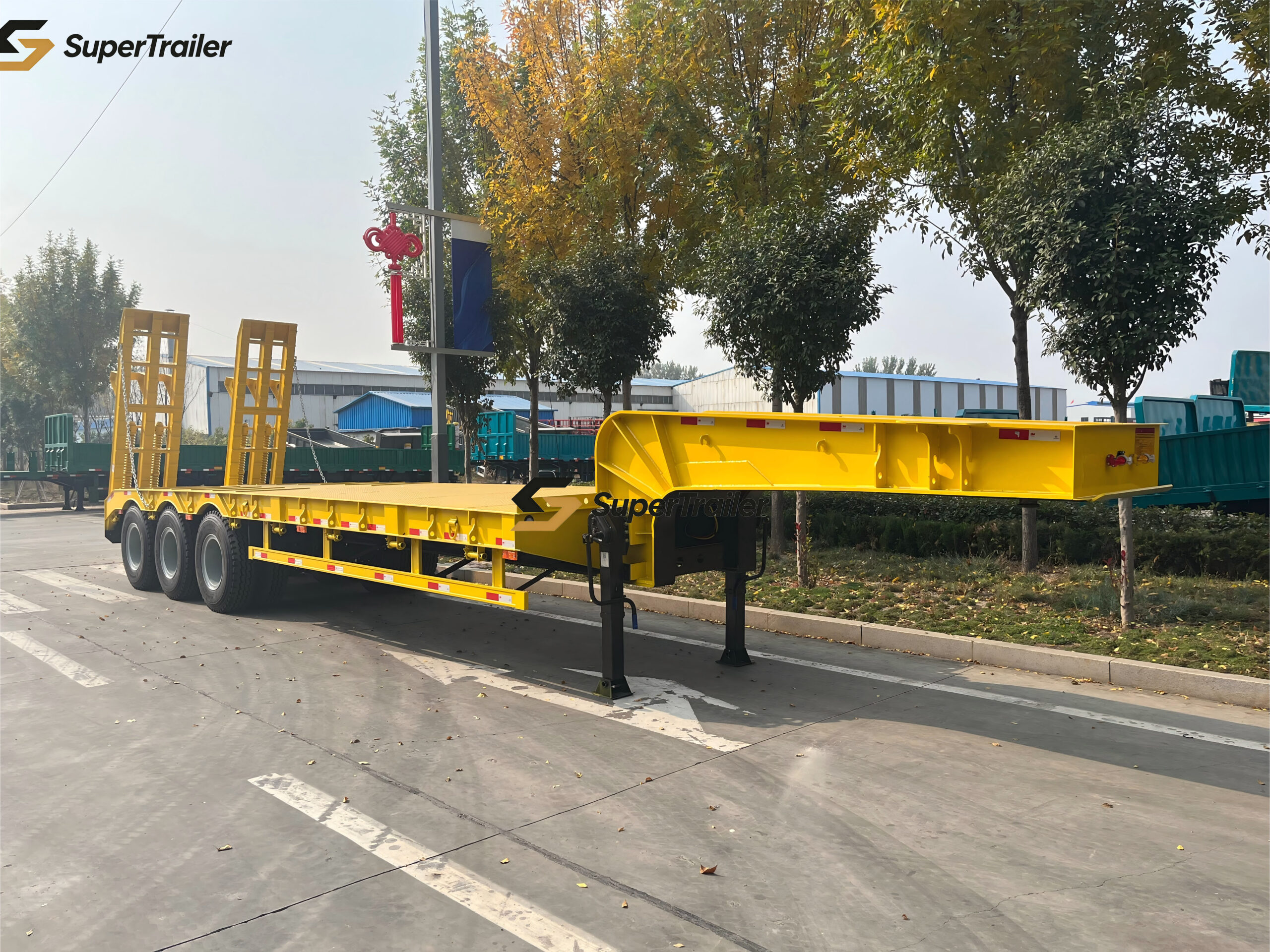

2025 3 Axle Lowbed Semi Trailer – for 35 Ton Excavator & Heavy Machinery
This is the 2026 updated version of our 3 axle lowbed semi trailer. It is designed specifically to carry a 35 ton excavator (such as Caterpillar 336 or Komatsu PC350) plus attachments, or other heavy machinery up to 50 tons.
We built this trailer for contractors and equipment dealers who need a simple, legal, and reliable lowbed – not a list of marketing claims.
What this trailer actually moves
- 35 ton crawler excavators (with/without breaker)
- 30–40 ton bulldozers (D6, D7 class)
- Wheel loaders (5–6 cubic meter bucket)
- Asphalt pavers, milling machines
- Skid steers, backhoes (multiple units)
- Industrial transformers, generators, large steel tanks
- If your machine fits within 50 tons and has tracks or tires, this lowbed handles it.
Core specifications – 2025 model changes
| Parameter | Value |
| Year model | 2025 (revised gooseneck geometry, thicker web plate) |
| Axles | 3, 13T or 16T (BPW / Fuwa / domestic brand) |
| Overall length | 12.0 m – 13.5 m (custom) |
| Flat deck length | 6.5 m – 7.5 m |
| Deck width | 2.55 m – 3.0 m |
| Loading height (unloaded) | 930 mm – 990 mm (lower than previous version) |
| Payload | 40 – 50 tons (tested) |
| Gooseneck type | Fixed or hydraulic detachable (2025 stronger lifting cylinders optional) |
| Ramps | Mechanical spring assisted (standard) or hydraulic fold up |

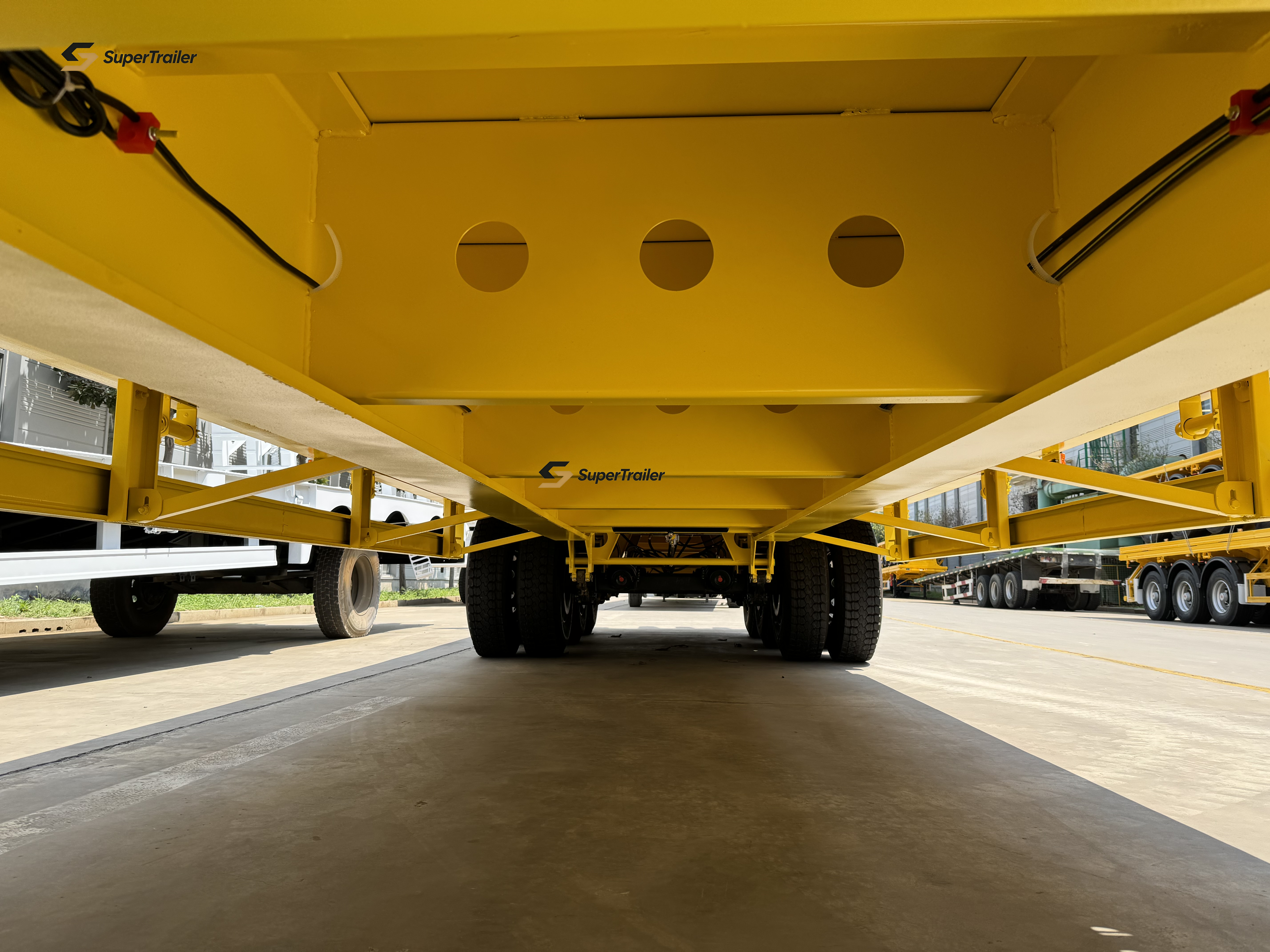

| Main beam steel | Q345B, web 6 mm (was 5 mm), flange 16 mm |

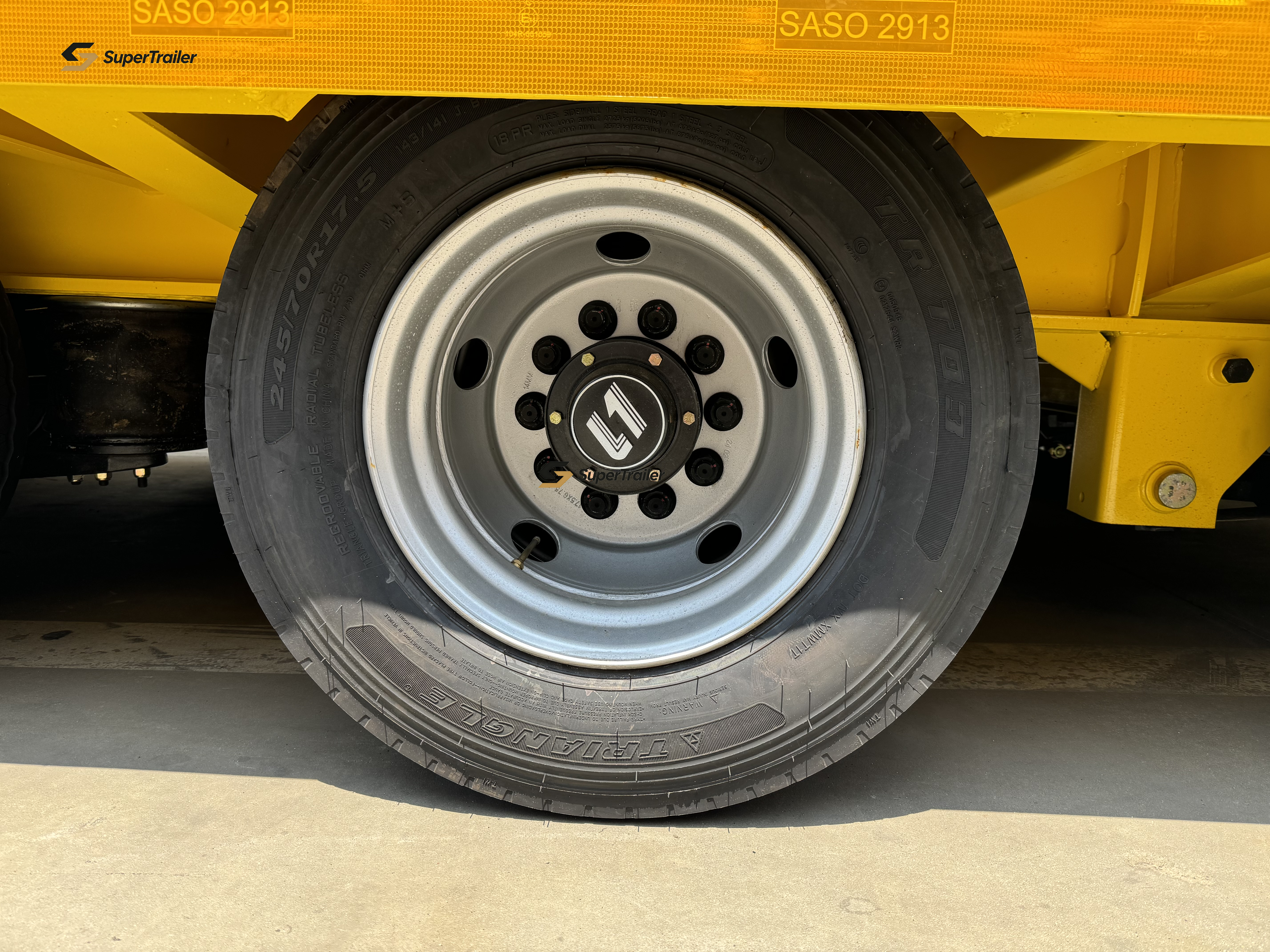

| Tire | 12.00R20 (8 pieces +1 spare) or 315/80R22.5 |
| Brake system | Dual line air brake, spring parking brake |
| ABS | Optional (WABCO valve with 4S/3M) |
✅ Advantages that matter
- Real 35 ton excavator fits without overhang
The flat deck length starts at 6.5 m – enough for a 35 ton excavator’s track frame. Bucket and stick overhang the rear, but track pads stay fully supported. - Low ramp angle saves undercarriage
At 930 mm loading height, the approach angle is around 9–10 degrees with 1.2 m ramps. Tracks climb without catching the belly pan. - Hydraulic detachable gooseneck option
Unhitch the gooseneck, drive the excavator on from the front, then reattach. You don’t need separate ramps. This is faster for daily moves. - No fake payload rating
We certificate each axle with a load test. 50 ton means the trailer will not bend or crack at 50 ton. Margin built in. - Standard parts, easy to fix anywhere
BPW axles, common tire size, standard air line fittings. No special order parts. Your mechanic can service it. - 2025 electrical update

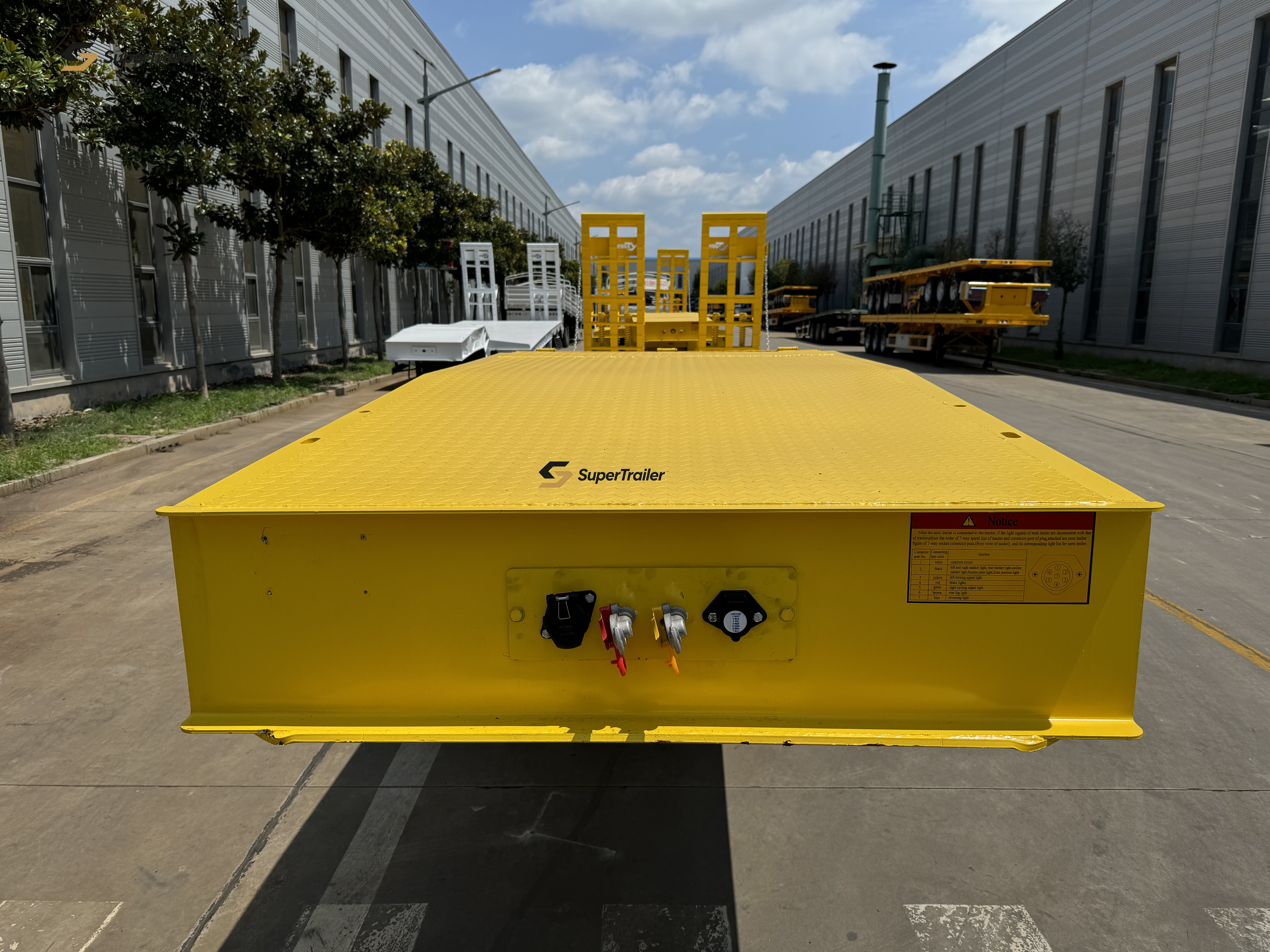

Full LED lights (sealed, waterproof), 7 pin or 13 pin plug, plus a dedicated auxiliary line for reverse camera if needed.
Application scenes
Daily excavator hauling – From rental yard to job site, up to 200 km radius.
Road construction – Moving pavers and rollers together (lowbed + rear ramps).
Mining service – Hauling 35 ton excavators for maintenance shifts.
Port equipment transport – Forklift, reach stacker, container handler.
Agricultural heavy machinery – Large tractors with dual wheels.
Tell us your machine model and weight. We will confirm if the 6.5 m deck works.
What you get with each trailer
- Cmplete chassis painted (two coats epoxy + polyurethane)

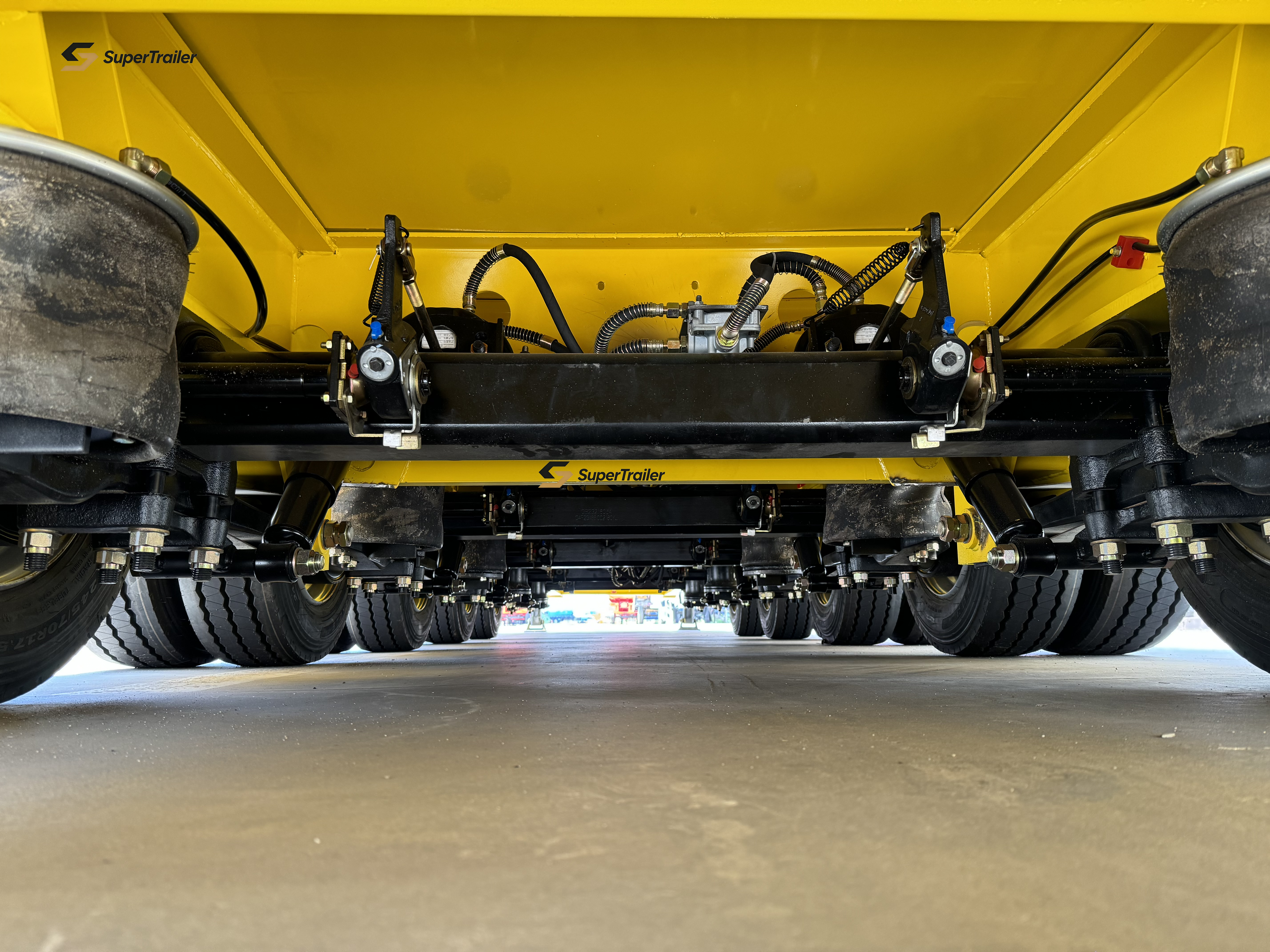

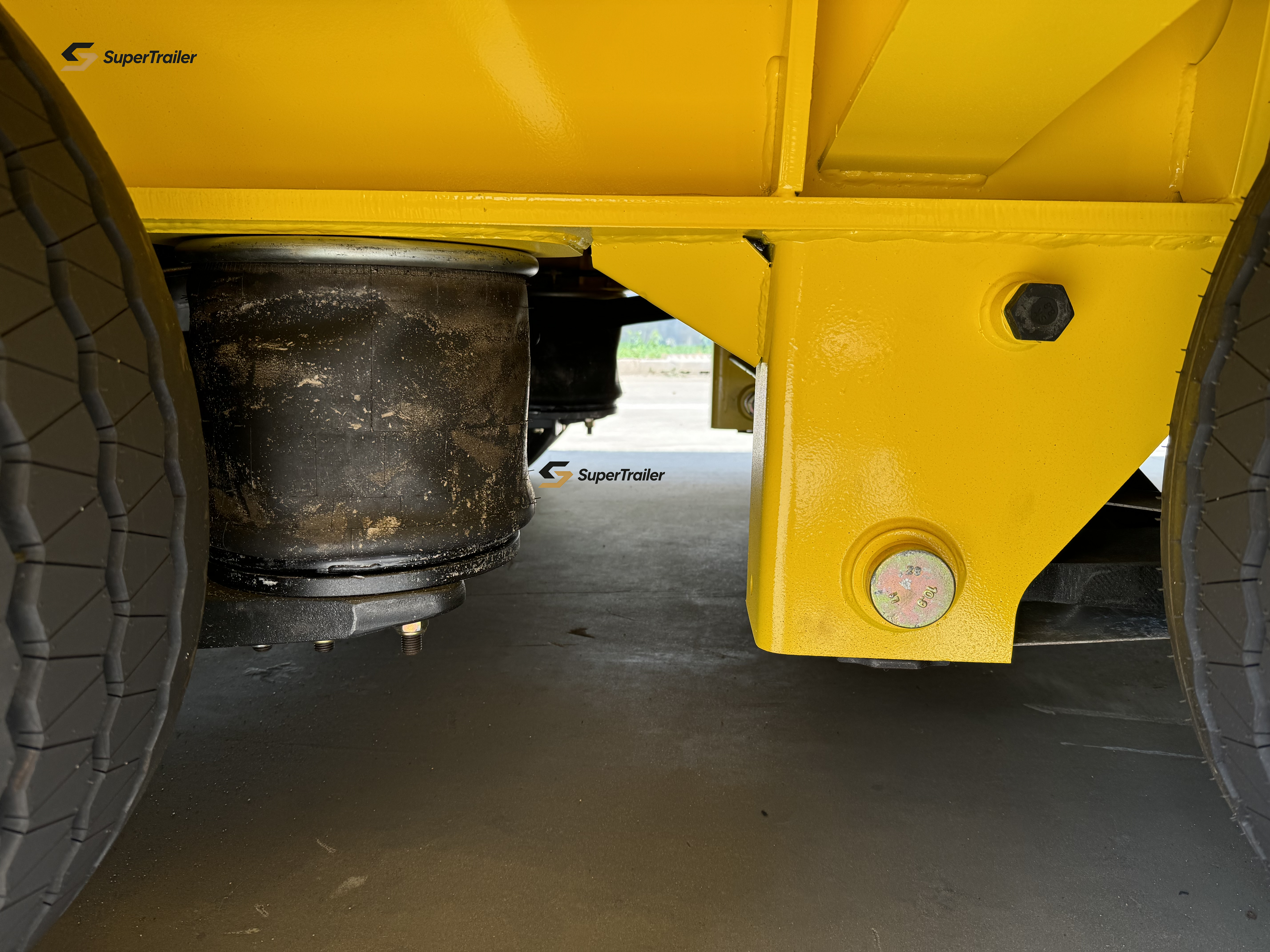

- 3 axles with leaf spring suspension (air optional)
- 8 tires + 1 spare on steel rims
- Mechanical spring assisted ramps (fold up storage)

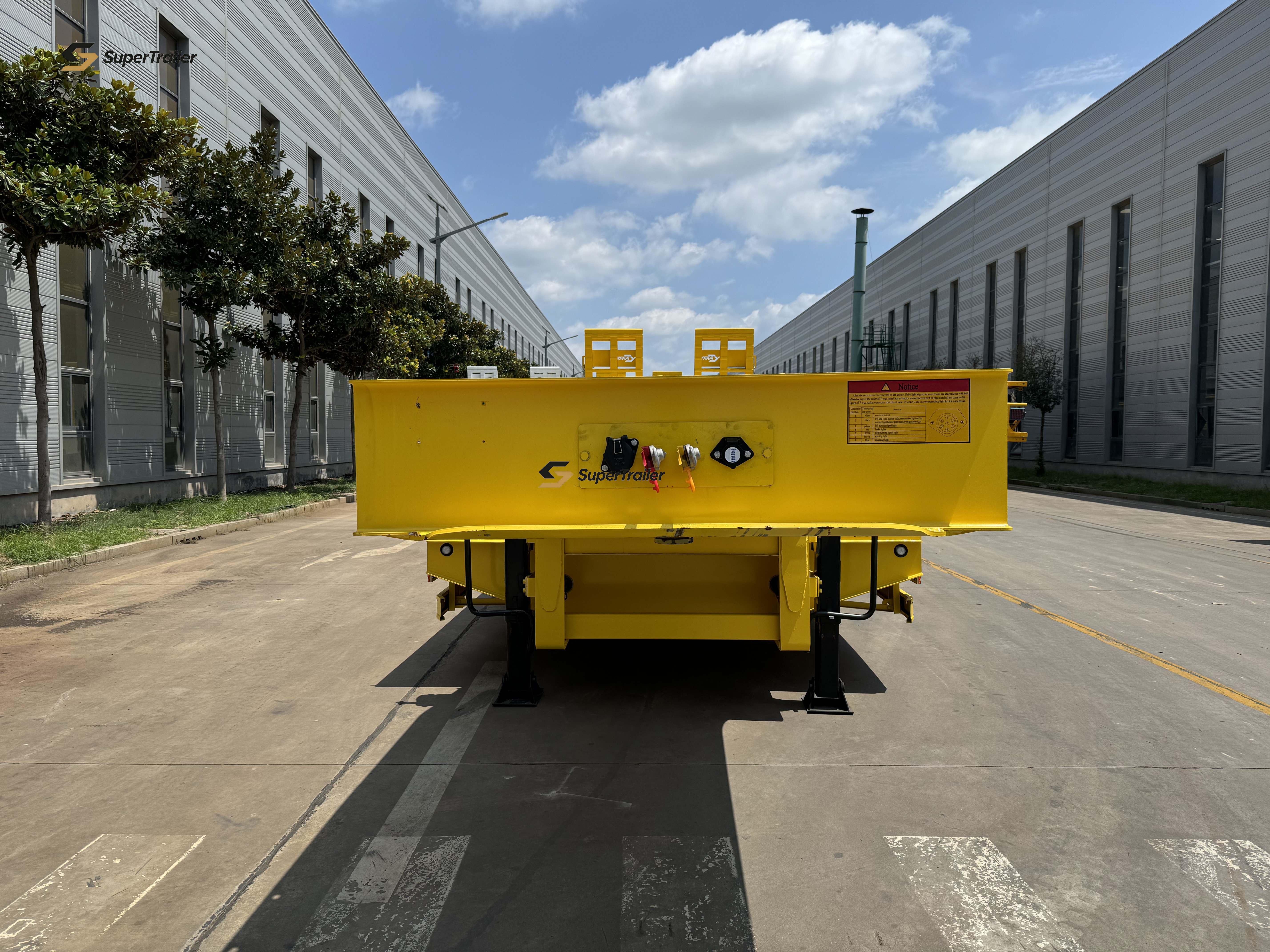

- Landing legs (two speed, 3 leg optional for heavy loading)
- Full LED lighting + reflectors
- Toolkit, manual, spare bulb kit
- One year structural warranty (frame and gooseneck)
- Hydraulic gooseneck, hydraulic ramps, or extra wide deck – quote separately.
Buying from a new supplier (no fake promises)
Real photos of your trailer during production (not stock images)
Short lead time – 25 working days after deposit
Payment terms – 30% deposit, 70% before shipment (LC at sight also accepted)
Shipping – Ro Ro or in 40 ft containers. We handle export paperwork.
If you are buying for the first time from a new website, we offer video call walkthrough before payment.
